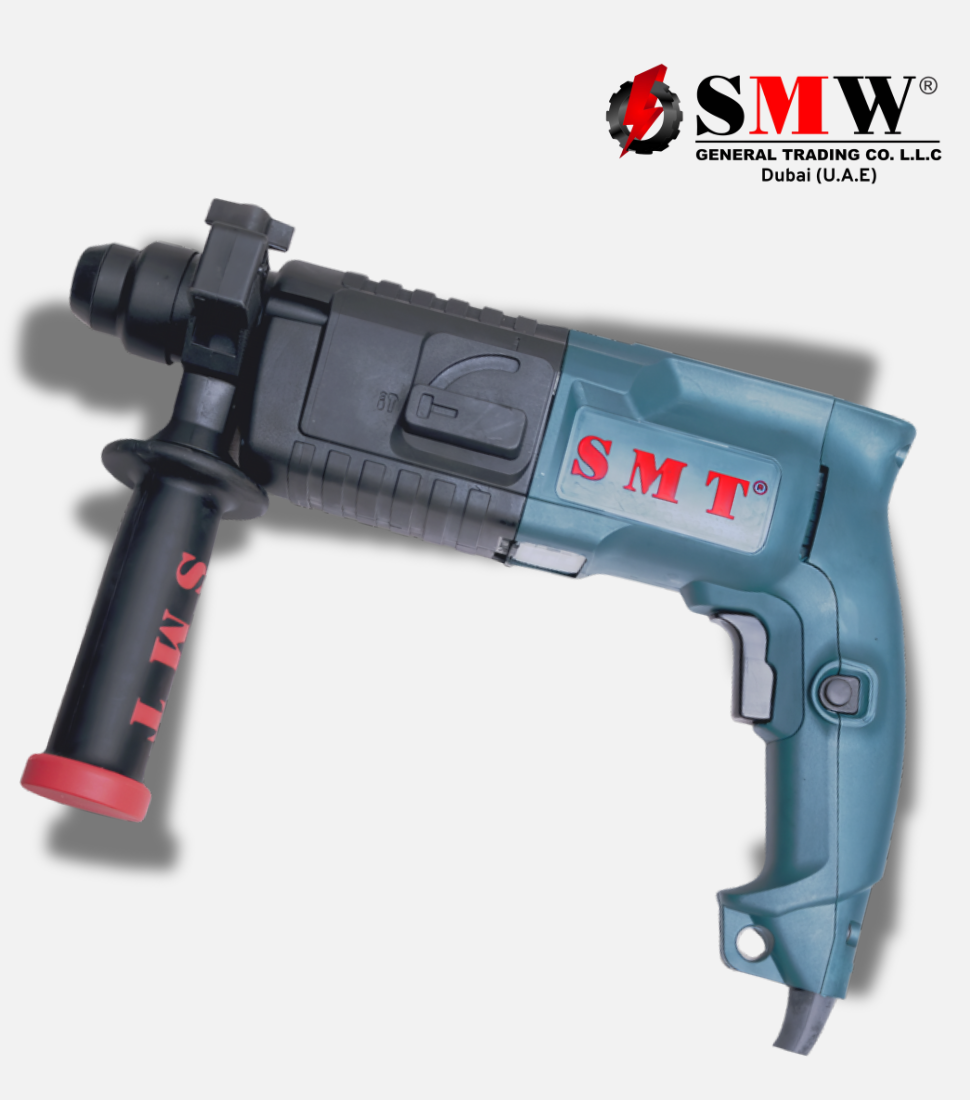

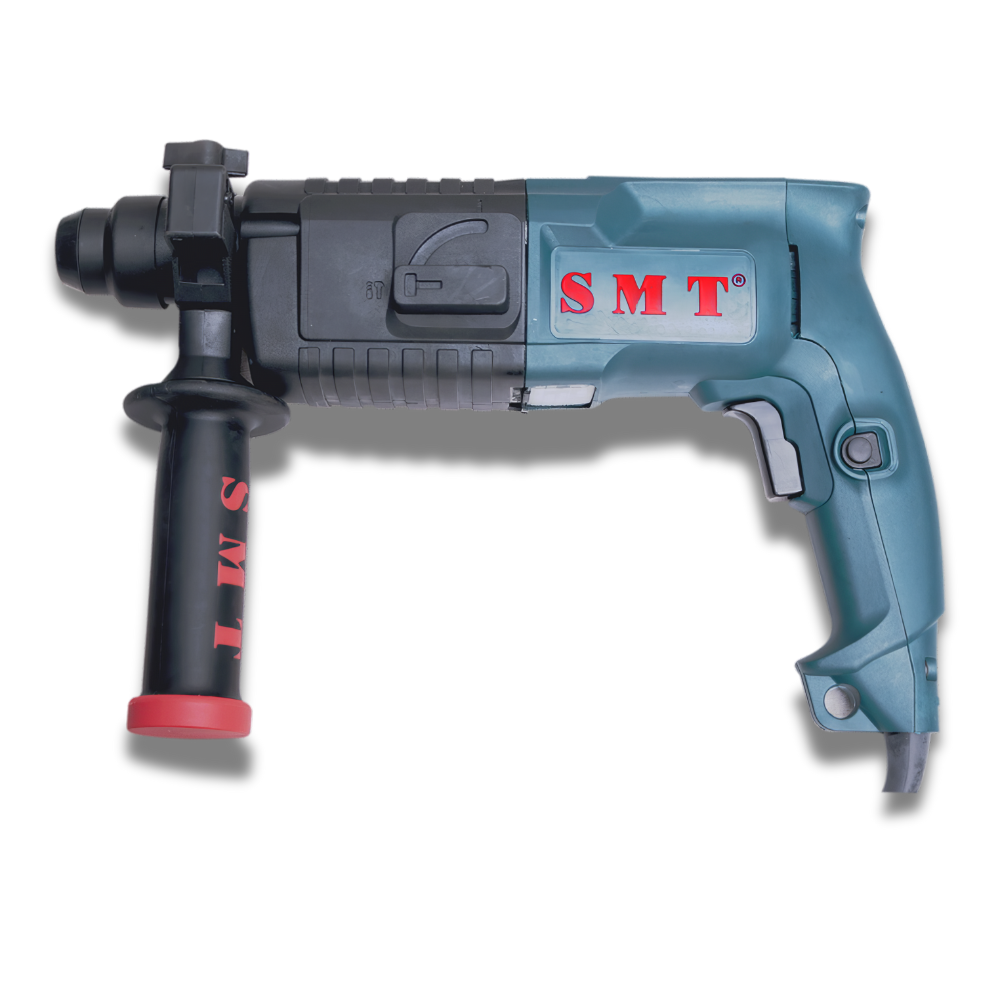

Hammer Drill 20mm SMT-6220

SMT-6220 Professional Rotary Hammer Drill

Tackle demanding jobs with power and precision using the SMT-6220 Rotary Hammer Drill, a versatile triple-function SDS-Plus tool designed for professional construction, renovation, electrical, plumbing, and heavy-duty DIY work. This corded rotary hammer combines rotary hammer mode for fast concrete/masonry drilling, standard drill mode for metal/wood, and chisel mode for light demolition—delivering efficient performance in one compact, reliable package.

With 1.5 J impact energy, a high blow rate, and a quick-change SDS-Plus system, the SMT-6220 excels at penetrating tough materials while reducing operator fatigue through anti-vibration features.

Key Features & Benefits

• Triple-Function Versatility Easily switch between:
  • Rotary Hammer (impact + rotation) for efficient concrete and masonry drilling
  • Standard Drill (rotation only) for precise holes in metal, wood, and plastic
  • Chisel Mode (impact only) for light scraping, chiseling, or tile removal
• High-Impact Performance Delivers 1.5 J impact energy with up to 0-3900 BPM (blows per minute)—providing fast, powerful penetration into concrete, brick, and blocks without excessive effort.
• Heavy-Duty Drilling Capacity
  • Concrete/Masonry: Up to 20 mm diameter
  • Wood: Up to 30 mm diameter Ideal for anchors, through-holes, conduit installation, and structural work.
• Professional SDS-Plus Chuck System Quick, tool-free bit changes for SDS-Plus bits (up to 20 mm capacity) — secure hold, reduced slippage, and compatibility with a wide range of masonry, drill, and chisel bits.
• The anti-vibration auxiliary handle reduces hand-arm vibration and fatigue during prolonged use—it enhances comfort and control on overhead, vertical, or extended jobs.

Important Technical Specifications

• Chuck Type: SDS-Plus
• No-Load Speed: 0-1000 RPM (variable)
• Impact Rate: 0-3900 BPM
• Impact Energy: 1.5 J per stroke
• Max Drilling Capacities: Concrete 20 mm, Wood 30 mm, Steel ~13 mm (typical)
• Voltage / Frequency: 220–240 V / 50 Hz ONLY
• Net Weight: Approximately 2.3–2.6 kg

Versatile Applications

• Construction & renovation: Drilling anchors, dowels, or holes in concrete walls/ceilings
• Electrical & plumbing: Installing conduits, pipes, junction boxes, and fixtures
• Masonry & tiling: Precise concrete/brick work and light chiseling
• General fabrication: Metal/wood drilling when hammer mode is off
• Demolition tasks: Light chiseling or tile removal

Safety Certifications & Compliance

The SMT-6220 meets international standards for safe, reliable operation in professional environments:

• CE Marking (Conformité Européenne) Compliant with EU directives:
  • Low Voltage Directive Electrical safety, insulation, grounding, and shock protection.
  • Electromagnetic Compatibility Directive Reduced interference and immunity.
    • Mechanical hazards (chuck security, impact mechanism, torque reaction)
    • Electrical and thermal safety
    • Vibration/noise limits and anti-vibration features
    • Overload protection and accidental start prevention
    • User instructions and marking
• RoHS Compliance Restricted hazardous substances below limits for safer handling and environmental responsibility.

Certifications are supported by declarations of conformity, accredited testing, and technical files — ensuring compliance with workplace regulations in Pakistan and export markets.

Critical Safety & Usage Notes

• 220V/50Hz ONLY — Requires stable 10A+ circuit to handle load without tripping.
• Always use the auxiliary handle—high torque/impact can cause tool rotation if not gripped properly.
• Concrete Drilling: Use hammer mode ONLY with appropriate masonry. Do not use SDS-Plus bits on metal/wood in hammer mode.
• Safety Gear Mandatory: A dust mask/respirator and safety goggles are essential for concrete/masonry dust; add hearing protection and gloves.
• Secure the workpiece with clamps; apply cutting oil for metal bits ≥ 5 mm.

Package Contents

• 1 × SMT-6220 Rotary Hammer Drill
• Auxiliary side handle (anti-vibration)
• Depth stop
• User manual & safety instructions
• Industrial/retail packaging

The SMT-6220 Rotary Hammer Drill combines triple-function power, SDS-Plus convenience, and vibration-reduced comfort—your go-to tool for professional concrete, masonry, and multi-material work. Backed by SMT quality and essential certifications.

                                                     Order now and power through your toughest jobs with ease.
