Hammer Drill 24mm SMT-6224

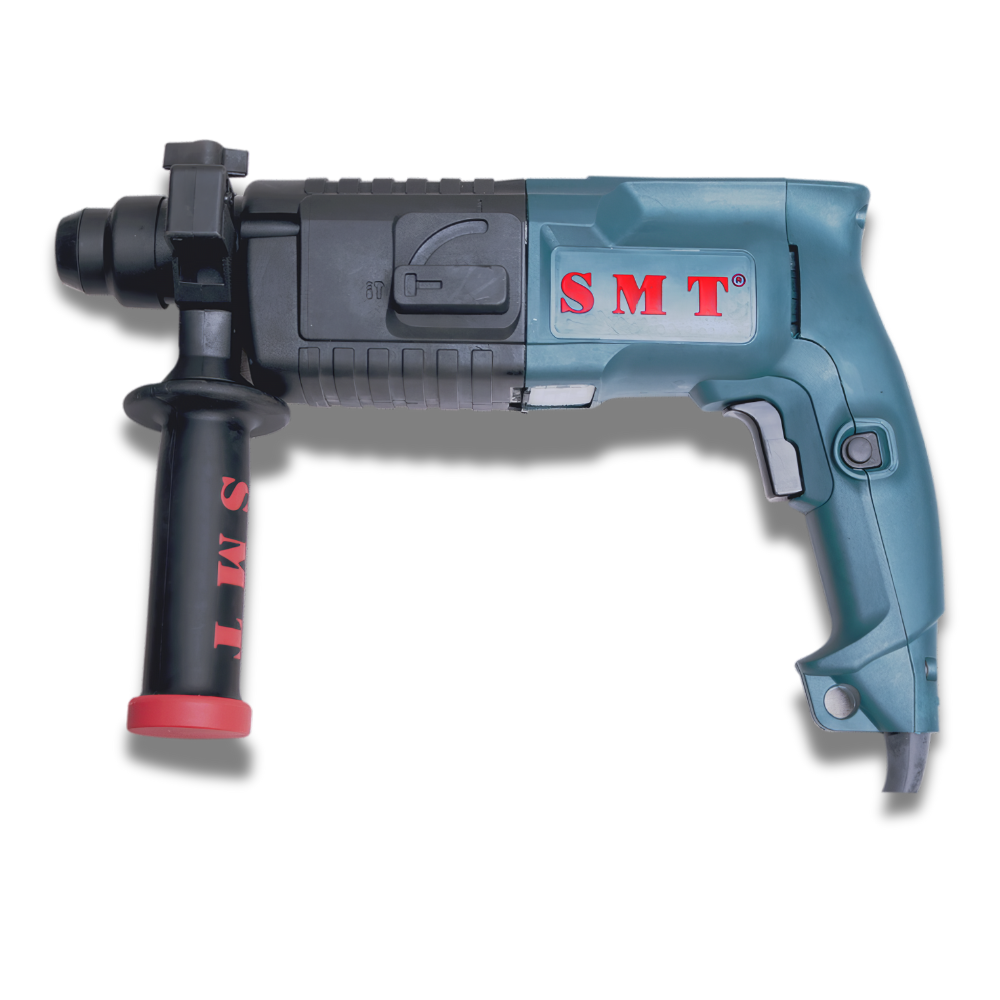

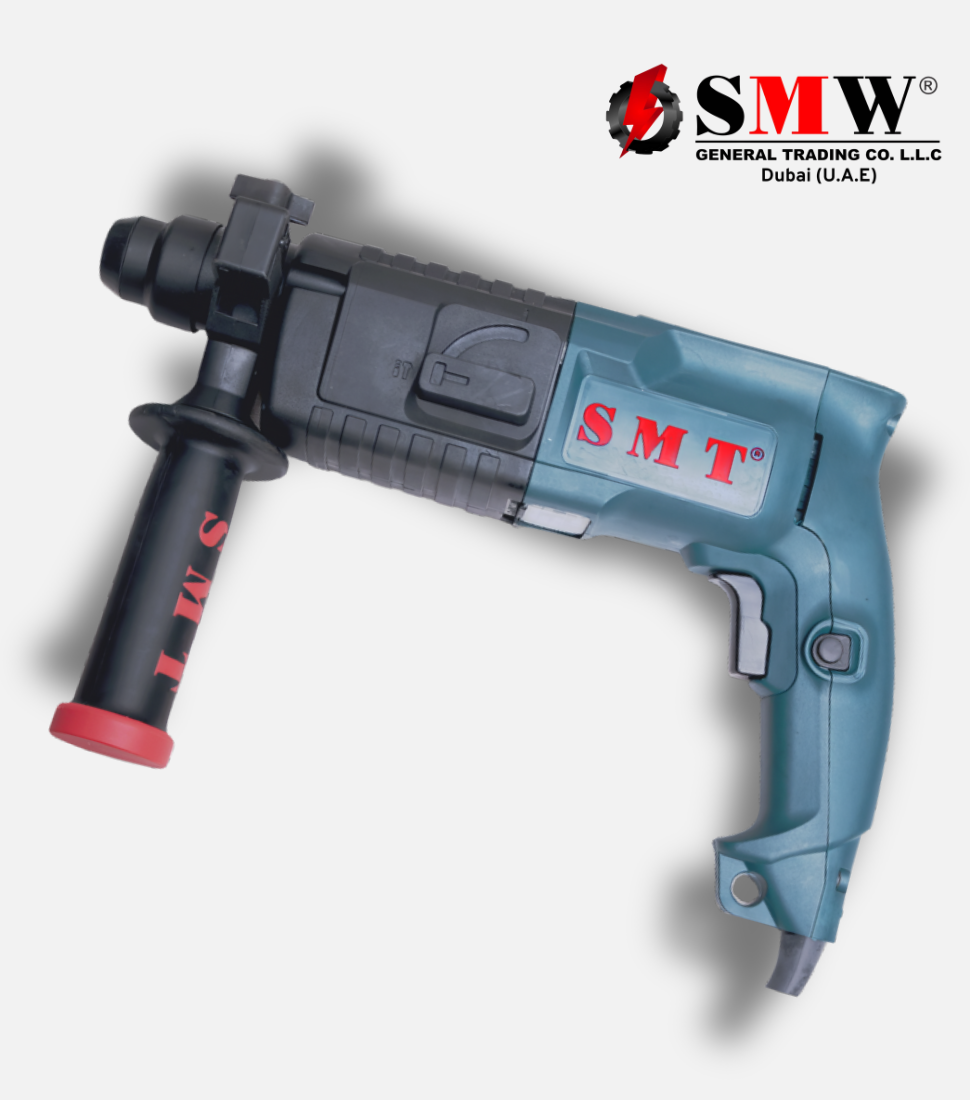

SMT-6224 Professional Demolition Rotary Hammer

Conquer the toughest demolition and heavy-duty drilling jobs with the SMT-6224 Demolition Rotary Hammer, a robust SDS-Max tool engineered for professional contractors, builders, renovation teams, and serious tradespeople. This high-impact powerhouse delivers demolition-grade performance for breaking concrete, chiseling tiles, trenching, and anchor installation with 20% larger capacity than standard SDS-Plus models, making it ideal for demanding construction sites, infrastructure work, and structural modifications.

Featuring 2.15J impact energy, rapid blow rate, and vibration-reduced handling, the SMT-6224 combines raw breaking power with controlled operation for efficient, fatigue-reducing work.

Key Features & Benefits

• Demolition-Grade Power: 2.15J impact energy provides strong, consistent force for breaking concrete slabs, chiseling tiles, removing old mortar, and creating trenches, outperforming lighter tools on thick, reinforced materials.
• High-Speed Impact Performance Up to 0-4850 BPM (blows per minute) ensures rapid material penetration and faster job completion in hard concrete, brick, and stone.
• Heavy-Duty Capacity
  • Concrete/Masonry: Up to 24 mm diameter (larger than typical 20 mm models)
  • Wood: Up to ~30–40 mm (rotation mode) Perfect for large anchors, through-holes, rebar work, and heavy demolition tasks.
• Industrial SDS-Max Chuck System: Heavy-duty SDS-Max holder for secure, quick bit changes with large-diameter bits (up to 24 mm) designed for high-torque applications and minimal slippage during intense use.
• Vibration Control & Anti-Vibration Handle: Integrated anti-vibration technology and auxiliary handle reduce hand-arm fatigue, enabling extended sessions on overhead, vertical, or prolonged demolition work.

Performance Guide by Application

• Concrete Drilling: Rotary Hammer Mode | Optimal ~600 RPM + 3000 BPM
• Wall Chiseling: Chisel Only Mode | Max BPM (4850) for aggressive breaking
• Tile Removal: Chisel Only Mode | Medium BPM (2500–3500) for controlled stripping
• Steel Drilling: Drill-Only Mode | Low RPM (300–500) for precision

Important Technical Specifications

• Chuck Type: SDS-Max
• No-Load Speed: 0–1000 RPM (variable)
• Impact Rate: 0–4850 BPM
• Impact Energy: 2.15 J
• Max Drilling Capacity: Concrete 24 mm
• Voltage / Frequency: 220–240 V / 50 Hz ONLY
• Net Weight: Approximately 4–6 kg (typical for SDS-Max demolition class)

Versatile Applications

• Heavy construction: Breaking concrete foundations, walls, and floors
• Renovation & demolition: Chiseling tiles, removing plaster, trenching for utilities
• Anchor & fixture installation: Large-diameter holes in reinforced concrete
• Structural work: Rebar exposure, slab cutting, and masonry modification

Safety Certifications & Compliance

The SMT-6224 meets international standards for safe operation in demanding environments:

• CE Marking (Conformité Européenne) Compliant with EU directives, including low voltage for electrical safety and electromagnetic compatibility for interference control.
• EN 60745-2-6 Compliance (Demolition-Certified) Certified to the specific safety standard for hand-held hammers (including rotary and demolition hammers), covering:
  • Mechanical hazards (impact mechanism, torque reaction, chuck security)
  • Electrical and thermal protection
  • Vibration/noise limits and anti-vibration features
  • Overload safeguards and user instructions ensure the tool addresses risks for high-impact demolition work, backed by independent testing and technical documentation.
• RoHS Compliance: Restricted hazardous substances below limits for safer use and environmental responsibility.

Certifications support compliance with workplace regulations in Pakistan and export markets.

Critical Safety & Usage Notes

• 220V/50Hz ONLY — Requires dedicated 15A+ circuit to handle high startup load.
• Mandatory Safety Gear: Steel-toe boots, a full face shield, hearing protection, a dust mask/respirator, and cut-resistant gloves are essential for concrete dust, flying debris, and noise.
• Two-Handed Operation: Always use the included auxiliary handle; high torque/impact can cause tool rotation if not gripped securely.
• Demolition Mode: Engage chisel/scaling bits only in chisel mode; do not use hammer mode on metal/wood.
• Secure the workpiece; apply lubricant for metal bits.

Packaging & Accessories

• Packaging: 5 units per master carton
• Includes the SDS-Max chuck system, pointed chisel, flat chisel, and an auxiliary anti-vibration handle
• User manual & safety instructions
• Industrial-grade packaging

The SMT-6224 Demolition Rotary Hammer delivers SDS-Max power, a larger 24 mm capacity, and vibration-controlled comfort—your professional solution for heavy concrete breaking and demolition. Backed by SMT engineering and essential certifications.

Order now and dominate your toughest jobs with confidence.
