Diamond Saw Blade 7″ (X-Thin Turbo)

Diamond Saw Blade 7″ (X-Thin Turbo)

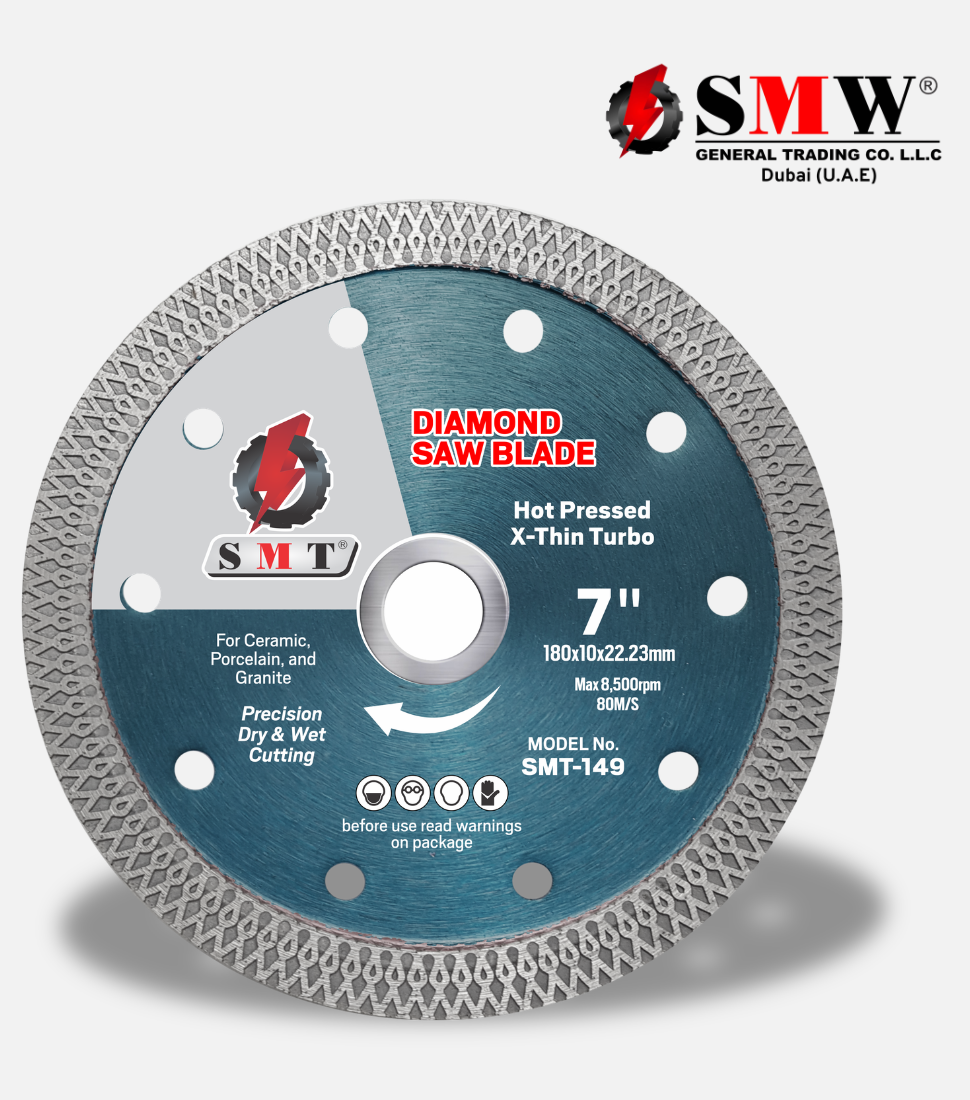

The blade features a sophisticated, multi-tonal aesthetic that reflects its technical complexity. The body is finished in a metallic teal/blue coating, which not only provides a professional look but acts as a protective layer against corrosion and friction.

• The “X-Thin” Turbo Rim: The most striking feature is the continuous diamond-rimmed edge featuring an “X” mesh pattern. This design serves two purposes:

  • Reduced Friction: The raised “X” pattern creates smaller contact points, allowing the blade to slice through hard surfaces with less resistance.

  • Heat Dissipation: These grooves act as cooling channels, pulling air (or water) into the cut to prevent the diamond segments from overheating and “glazing” over.

• Cooling Vents: There are eight precision-drilled circular holes positioned around the inner core. These are essential for maintaining the structural integrity of the steel core by allowing heat to escape, reducing the risk of the blade warping or wobbling during high-RPM use.

2. Technical Specifications & Performance

The SMT-149 is built for speed and precision, balanced by strict safety tolerances:

• Dimensions: It is a 7-inch (180mm) blade. The technical marking $180 \times 10 \times 22.23mm$ indicates a 180mm total diameter, a 10mm diamond segment height (which offers a long service life), and a 22.23mm bore (the center hole) designed to fit most standard circular saws and angle grinders.

• Velocity: It is rated for a maximum speed of 8,500 RPM. Operating at $80M/S$, the blade is optimized for fast, aggressive cutting without sacrificing the smoothness of the finish.

• Hot-Pressed Technology: Unlike cheaper cold-pressed blades, this is Hot-Pressed, meaning the diamond segments and the steel core are bonded under high pressure and temperature. This results in a much stronger bond, ensuring segments don’t break off during intense applications.

3. Material Compatibility

The blade is specifically marketed for high-density, brittle, and expensive materials that are prone to chipping.

• Porcelain & Ceramic: The “X-Thin” profile is critical here, as it minimizes the “kerf” (the width of the cut), ensuring a clean, chip-free edge on delicate tiles.

• Granite: The diamond concentration is high enough to handle the extreme hardness of natural stone like granite, which would quickly dull a standard masonry blade.

• Dry & Wet Versatility: While it is capable of Dry Cutting (convenient for quick jobs or sites without water access), it is also optimized for Wet Cutting, which provides the cleanest results and the longest tool life.

4. Safety and Manufacturer Guidance

SMW emphasizes user safety through clear, high-contrast markings on the face of the disc:

• Rotation Indicator: A large white arrow clearly marks the directional flow. Installing a diamond blade backward can cause the diamonds to strip away rather than cut, potentially leading to blade failure.

• PPE Requirements: The lower quadrant features four mandatory safety icons, reminding the operator to use:

  1. Safety Goggles (Protection against high-speed stone chips).

  2. Ear Defenders (Protection against high-decibel grinding noise).

  3. Dust Mask (Essential for dry cutting to prevent silicosis).

  4. Work Gloves (General hand protection).
